View 5X

The INNO View 5X is a professional core alignment fusion splicer combining fast splice performance with AI-driven features, built-in IoT and GPS, and integration with View Pro Manager. It offers splicing from 4 seconds, heating from 9 seconds, a 5-inch touchscreen and up to 300 splice-and-heat cycles per charge.

Discontinued · Still supported

3-year warranty

Included with every INNO splicer, backed by our UK service centre.

Quick enquiry

Ask about price, availability, trade-in or a demonstration. We’ll know which product you’re looking at, so just tell us what you need.






    We’ll get back to you as soon as possible.

    Overview

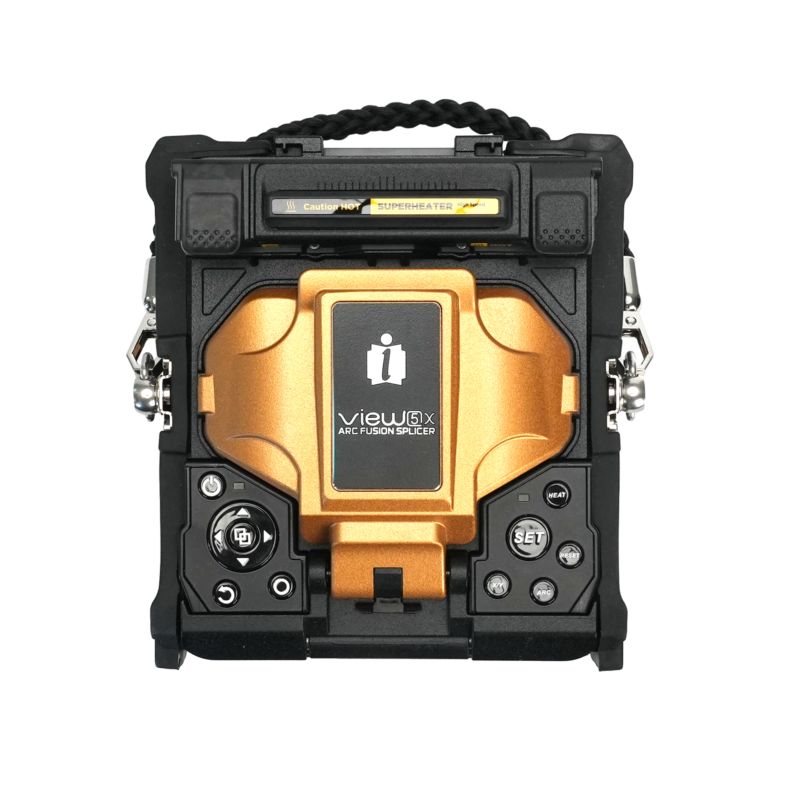

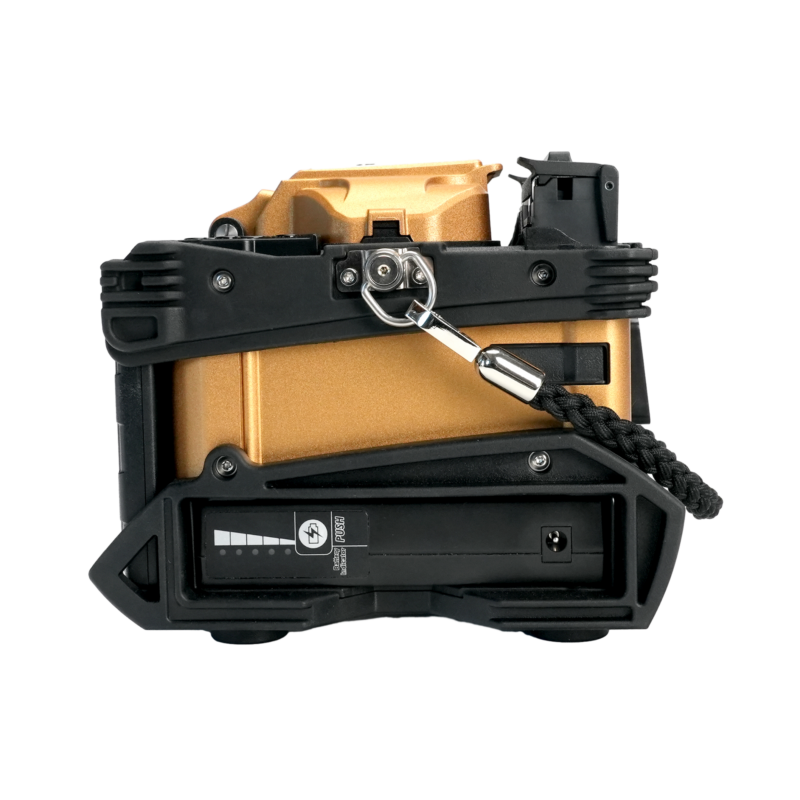

    The INNO View 5X is a high-performance single-fibre fusion splicer designed for professional fibre installation, maintenance and repair work.
    Using core alignment technology, the View 5X precisely aligns the fibre cores before fusion, helping deliver consistently low splice loss across a wide range of fibre types. INNO specifies typical splice loss as low as 0.01 dB for single-mode fibre.

    The View 5X combines precision splicing with intelligent connectivity. Embedded IoT and GPS modules enable integration with INNO’s View Pro Manager, supporting equipment management, splice records and connected field operations. For fast field operation, Quick Mode delivers an average splice time of approximately 4 seconds, while the heater can complete a cycle in approximately 9 seconds. Automatic arc calibration compensates for changes in air pressure and temperature to help maintain reliable performance across different working environments.

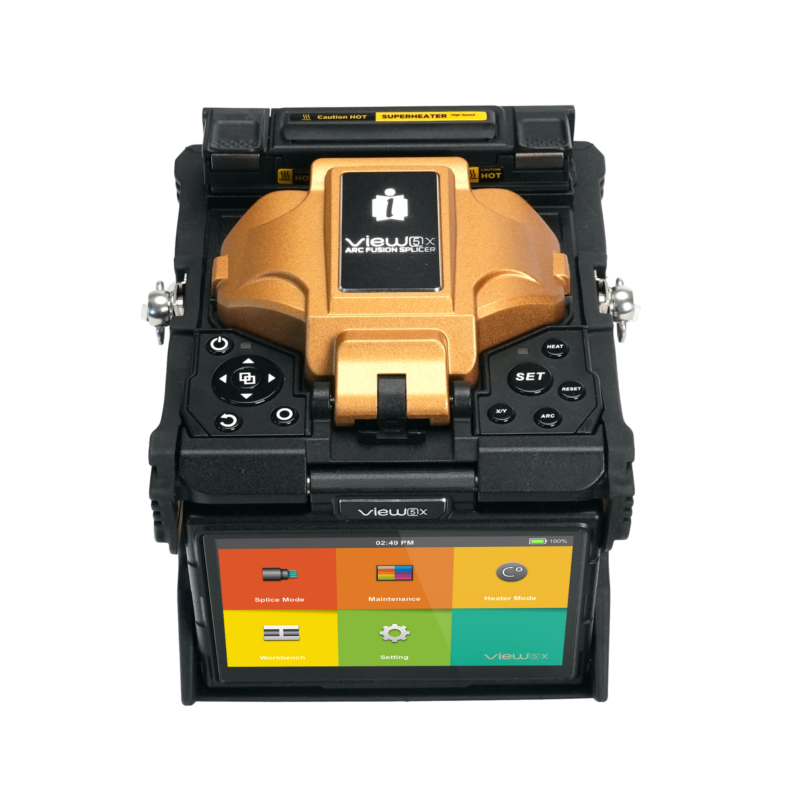

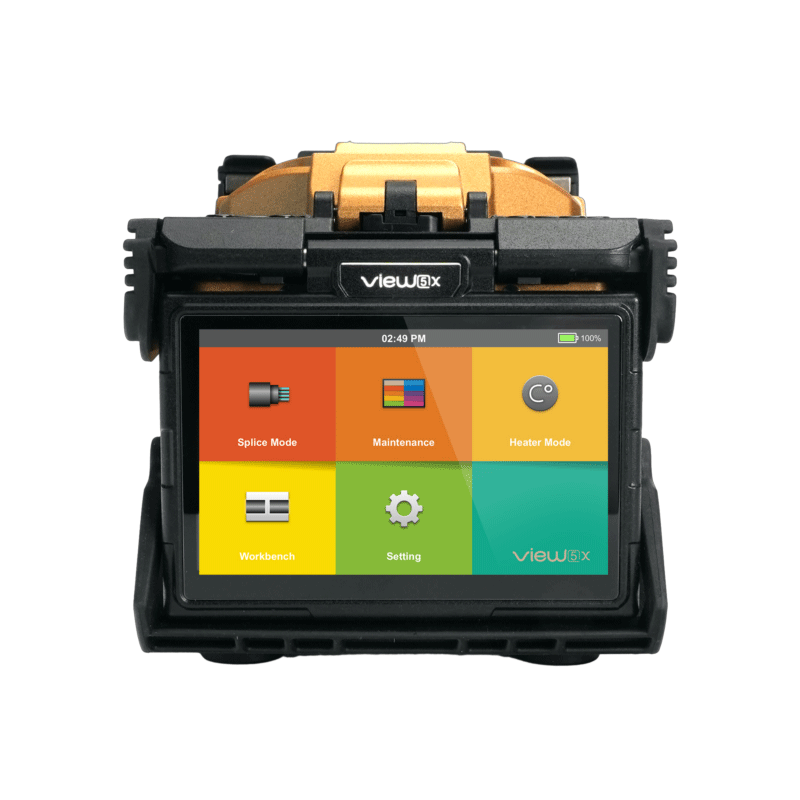

    A 5-inch full-colour touchscreen, USB-C connectivity and internal storage for up to 20,000 splice records and 10,000 splice images provide a modern interface for professional fibre technicians.

    INNO Instrument Exclusive Business Partner for the UK and Ireland

    Why buy from Uptero

    One team supports you from the first conversation to the last service, with everything your equipment needs in one place.

    Expert sales advice

    Help choosing the right equipment for your work and budget.

    Manufacturer warranty

    INNO warranty cover, handled here in the UK.

    Service and repair

    Calibration, servicing and repairs at our UK service centre.

    Rental equipment

    Splicers to hire for projects, busy periods and backup.

    Accessories and spares

    Genuine INNO parts, consumables and accessories in UK stock.

    Technical support

    Engineers on hand for faults, software updates and everyday questions.

    Downloads & support

    Software for this product, plus direct access to our UK technical team.

    Software updates

    • Software 1.04For units on V1.xx

      Updated German, Ukrainian, Finnish language support

      General improvements

      How to update

      If the currently installed software is V1.00–V1.01, extract the package, copy all extracted files to the USB root and run the software upgrade twice. From V1.02 onward, you may use update.zip directly (or the extracted files), but the software upgrade must still be run twice.

      After updating: Run the upgrade a second time (upgrade twice).

      Download

    Need a different version? Contact us or WhatsApp

    PC programs
    • USB port driver for Windows 8 and 10 (64-bit)ZIP, 6.1 MB
      Release notes
      Install this driver if your PC does not recognise the splicer when connected by USB.
      Download
    • INNO PC ProgramVersion 1.21ZIP, 81.0 MB
      Release notes
      Download splice records from your INNO splicer and create reports on a Windows PC.
      Download

    Every INNO splicer from Uptero carries a 3-year warranty. If it ever needs attention, our UK service centre turns repairs around in about 3 working days.
