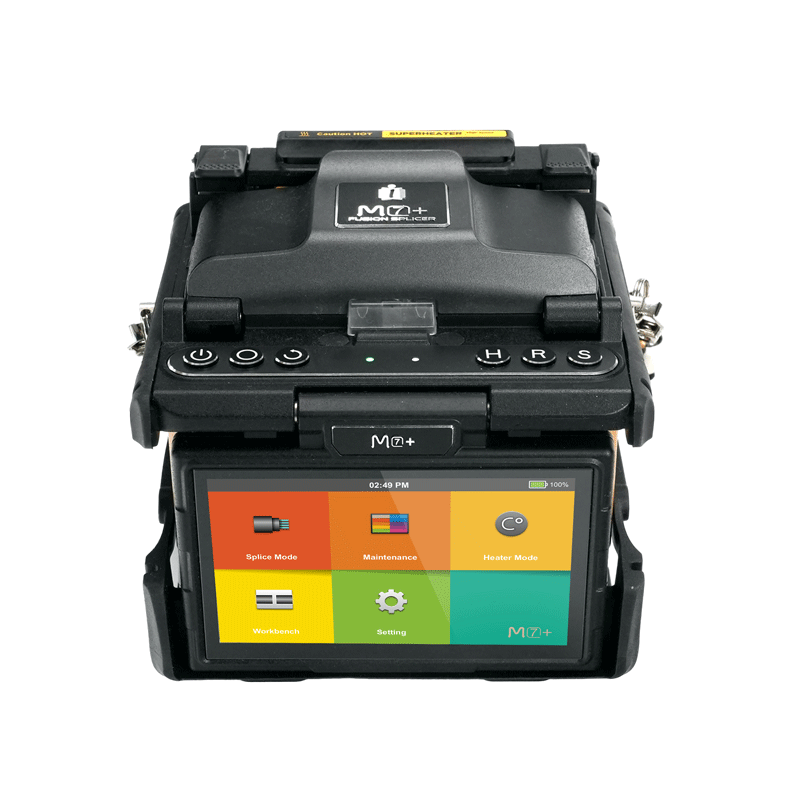

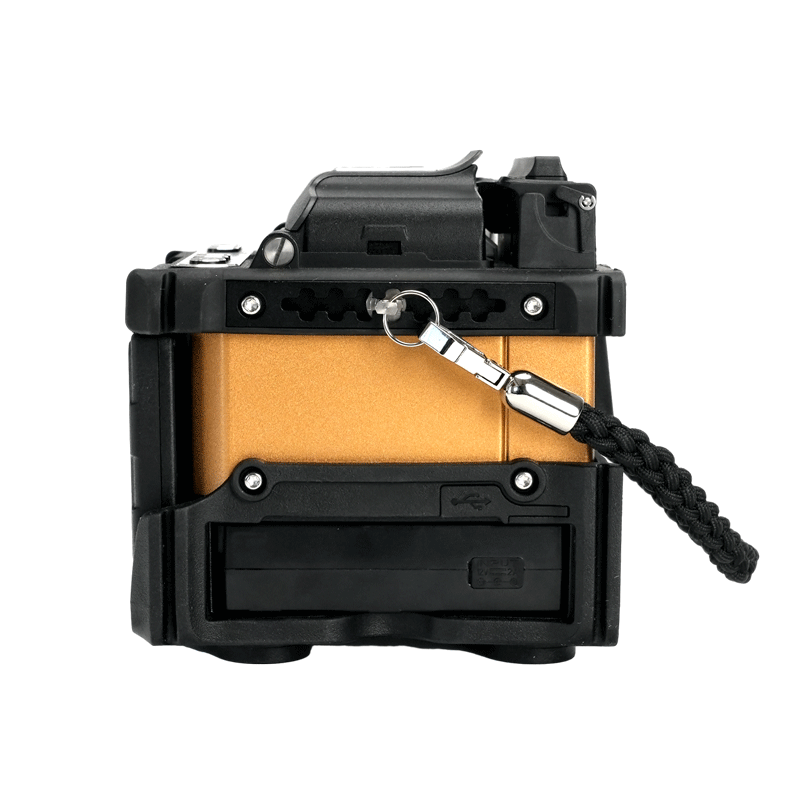

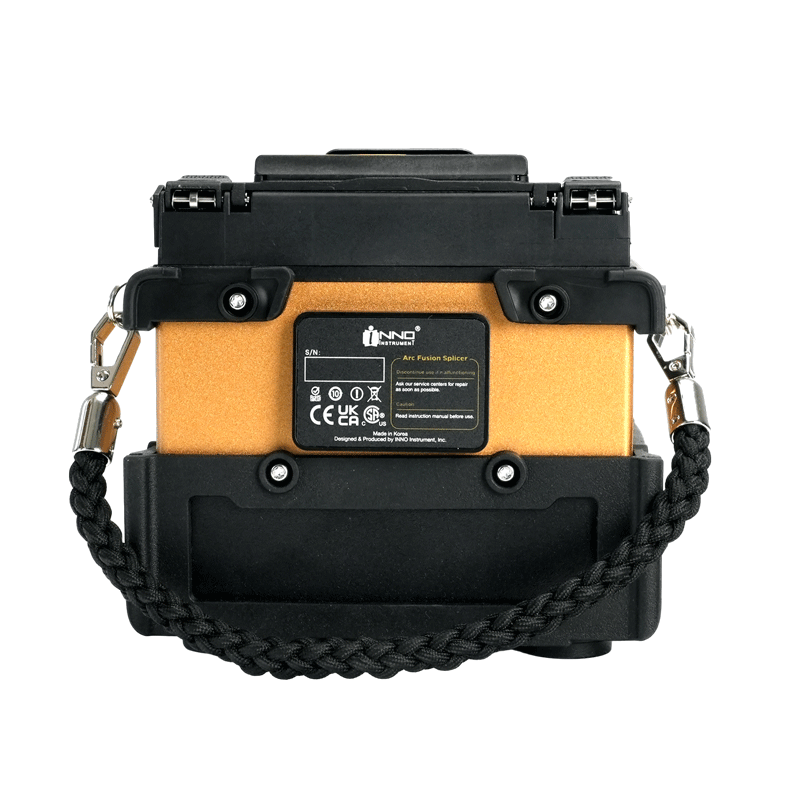

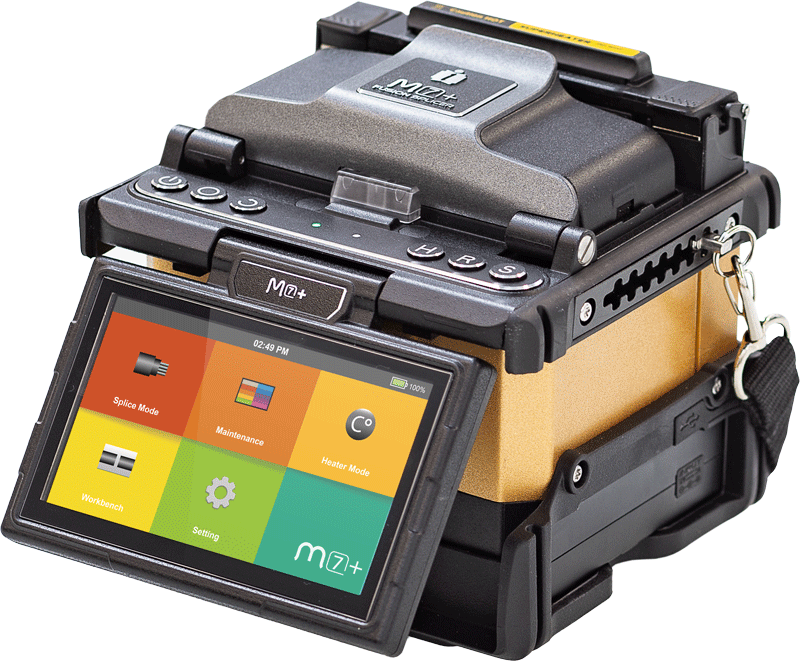

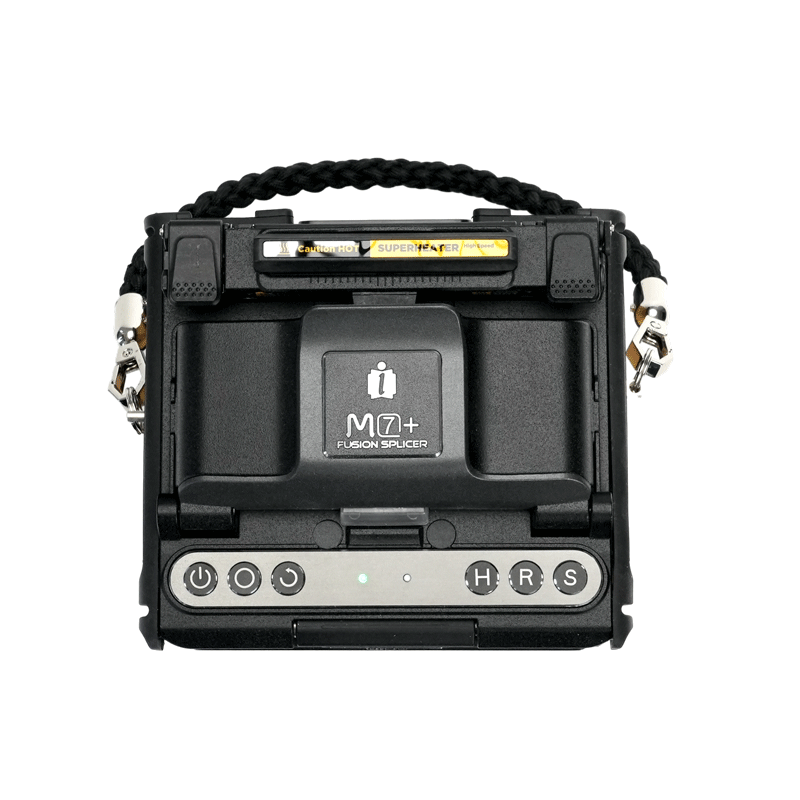

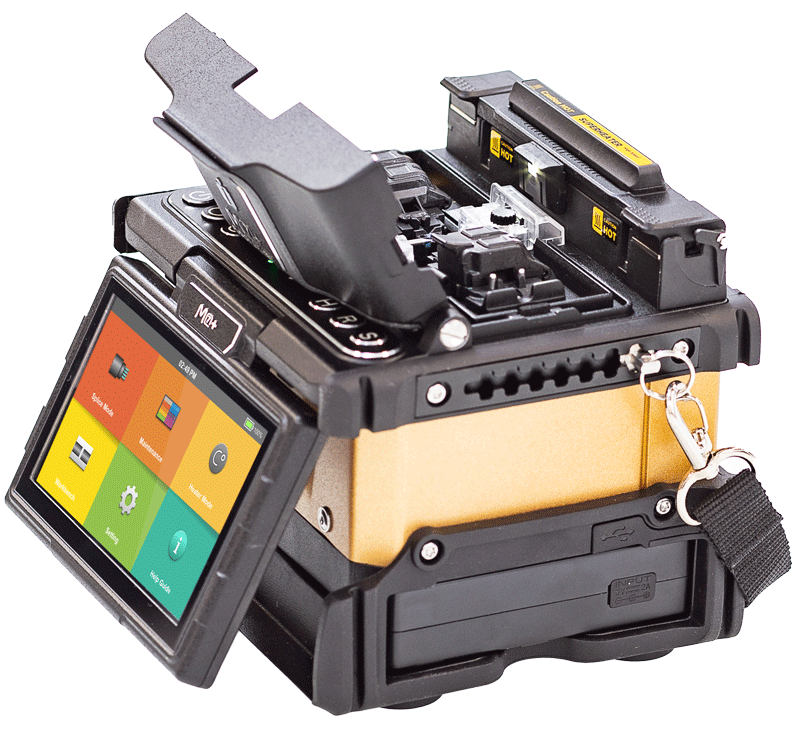

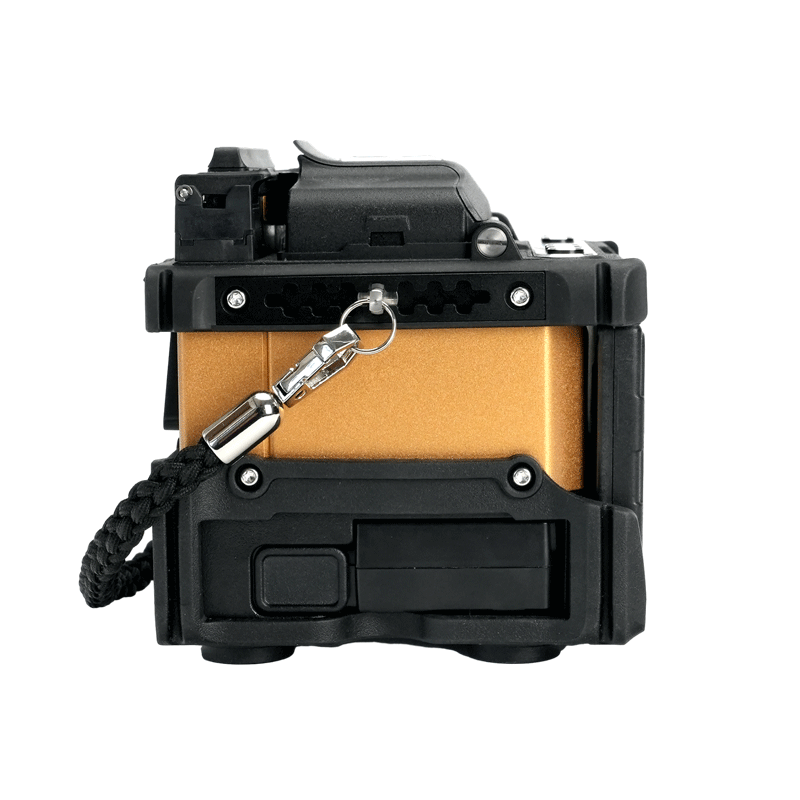

INNO M7+ Active Cladding Alignment Fusion Splicer

View Pro Manager compatible

The INNO M7+ is a compact, lightweight active cladding alignment fusion splicer designed for professional FTTH, FTTP and telecoms work. With splicing from 4 seconds, heating from 9 seconds, built-in IoT and GPS, and integration with View Pro Manager, it combines fast field performance with intelligent equipment and job management.

£1,850.00 +VAT

3-year warranty

Included with every INNO splicer, backed by our UK service centre.

Quick enquiry

Ask about price, availability, trade-in or a demonstration. We’ll know which product you’re looking at, so just tell us what you need.






    We’ll get back to you as soon as possible.

    Key features

    • 4 s

      Fast cladding-alignment splicing

      Active V-groove cladding alignment for quick, reliable splices on last-mile and FTTH work.

    • 9 s

      Rapid heating

      Fast, even heat shrinks a 60 mm slim sleeve in as little as 9 seconds.

    • 1.49 kg

      Lightweight and compact

      Easy to carry, set up and use in confined spaces and on remote installs.

    • GPS

      Built-in GPS and wireless

      Geo-tagged splice results sync to View Pro Manager for real-time job tracking.

    • 200

      Cycles on one charge

      The 3,000 mAh battery gives up to 200 splice-and-heat cycles and charges over USB-C.

    • 6,000

      Arcs per electrode set

      Electrodes optimised for splice quality last up to 6,000 arcs.

    Overview

    The INNO M7+ is a compact professional fusion splicer built for engineers who require fast, reliable single-fibre splicing in a portable field-ready platform.
    Using Active V-Groove cladding alignment, the M7+ delivers consistent fibre positioning while maintaining the compact dimensions and lower weight required for day-to-day installation and maintenance work.

    The splicer offers a Quick Mode splice time of approximately 4 seconds and heating from 9 seconds, helping technicians work efficiently across FTTH, FTTP, access network and general telecoms projects.

    Built-in IoT connectivity and GPS allow the M7+ to connect with INNO’s View Pro Manager ecosystem for equipment tracking, splice data management and job-related information.
    Automatic arc calibration compensates for environmental changes such as temperature and air pressure, supporting reliable performance across different working conditions.

    INNO Instrument Exclusive Business Partner for the UK and Ireland

    Why buy from Uptero

    One team supports you from the first conversation to the last service, with everything your equipment needs in one place.

    Expert sales advice

    Help choosing the right equipment for your work and budget.

    Manufacturer warranty

    INNO warranty cover, handled here in the UK.

    Service and repair

    Calibration, servicing and repairs at our UK service centre.

    Rental equipment

    Splicers to hire for projects, busy periods and backup.

    Accessories and spares

    Genuine INNO parts, consumables and accessories in UK stock.

    Technical support

    Engineers on hand for faults, software updates and everyday questions.

    View Pro Manager compatible

    Manage every splicer from one dashboard

    This splicer connects to View Pro Manager, INNO’s cloud platform for fusion splicer fleets. Follow results as they happen, keep complete records for audits and keep every splicer set up the way you want it.

    Technical specifications

    ModelM7+
    Alignment methodCladding alignment
    Number of fibresSingle
    Applicable fibresSM (G.652 & G.657) / MM (G.651) / DS (G.653) / NZDS (G.655)
    Coating diameter100 µm – 3 mm
    Cladding diameter80–150 µm
    Cleave length5–16 mm
    Typical splice lossSM 0.03 dB / MM 0.01 dB / DS 0.05 dB / NZDS 0.05 dB / G.657 0.03 dB
    Return loss> 60 dB
    Splice time
    Quick mode
    Avg. 4 s
    SM mode
    Avg. 5 s
    Splice programmesMax. 300 modes
    Automatic calibrationAutomatic arc calibration by air pressure & temperature
    Electrode lifespan6,000 arc discharges
    Heating programmesMax. 100 modes
    Heating time
    Quick
    9 s
    Average
    13 s (60 mm slim)
    Protection sleeve20–60 mm
    Data outputView Pro Manager (cloud), USB-C
    Splice memory20,000 splice records / 10,000 images
    Battery
    Capacity
    3,000 mAh
    Operation cycle
    200 cycles (splice + heat)
    Power supplyAC 100–240 V, DC 9–19 V
    Monitor4.3" colour LCD, full touchscreen
    Magnification×320
    Size (H × W × D)124 × 144 × 131 mm
    Weight1.49 kg
    Pull test1.96–2.25 N

    * Splice time is measured from fibres entering the screen until the estimated loss is displayed, and can vary with calibration status.

    * Battery measured as a 1-minute cycle of splicing and heating in Power Save mode.

    Environmental conditions & tests

    • IPX2Water resistance
    • 76 cm dropShock resistance
    • IP5XDust resistance
    Operating conditions
    Altitude
    0–5,000 m
    Humidity
    0–95%, non-condensing
    Temperature
    −10 to 50 °C
    Wind
    Up to 15 m/s
    Storage conditions
    Humidity
    0–95%, non-condensing
    Temperature
    −40 to 80 °C
    Resistance tests
    Shock
    76 cm drop onto bottom surface
    Dust exposure
    0.1–500 µm aluminium silicate
    Rain
    10 mm/h for 10 min

    Downloads & support

    Software for this product, plus direct access to our UK technical team.

    Software updates

    • Software 1.04For units on V1.xx

      Updated German, Ukrainian, Finnish language support

      Supports up to 300 splice modes

      Supports up to 100 heat modes

      Add message function, receive VPM messages

      Can now set heating time from 5 to 900 seconds

      General improvements

      How to update

      When upgrading a unit on V1.00–V1.02, extract the downloaded package, copy all extracted files to the USB root and run the software upgrade twice.

      Download

    Need a different version? Contact us or WhatsApp

    PC programs
    • USB port driver for Windows 8 and 10 (64-bit)ZIP, 6.1 MB
      Release notes
      Install this driver if your PC does not recognise the splicer when connected by USB.
      Download
    • INNO PC ProgramVersion 1.21ZIP, 81.0 MB
      Release notes
      Download splice records from your INNO splicer and create reports on a Windows PC.
      Download
