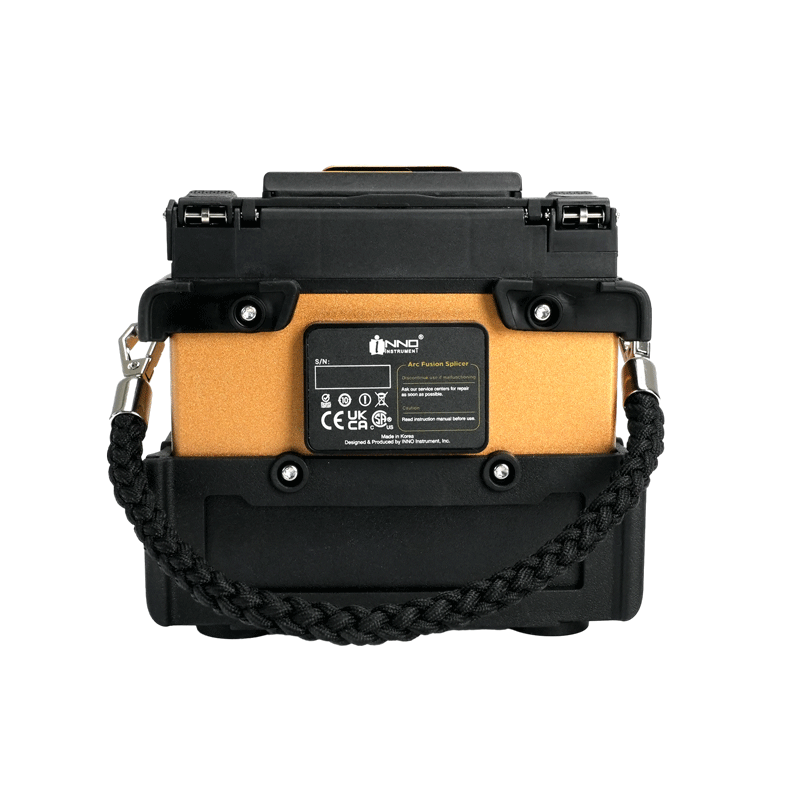

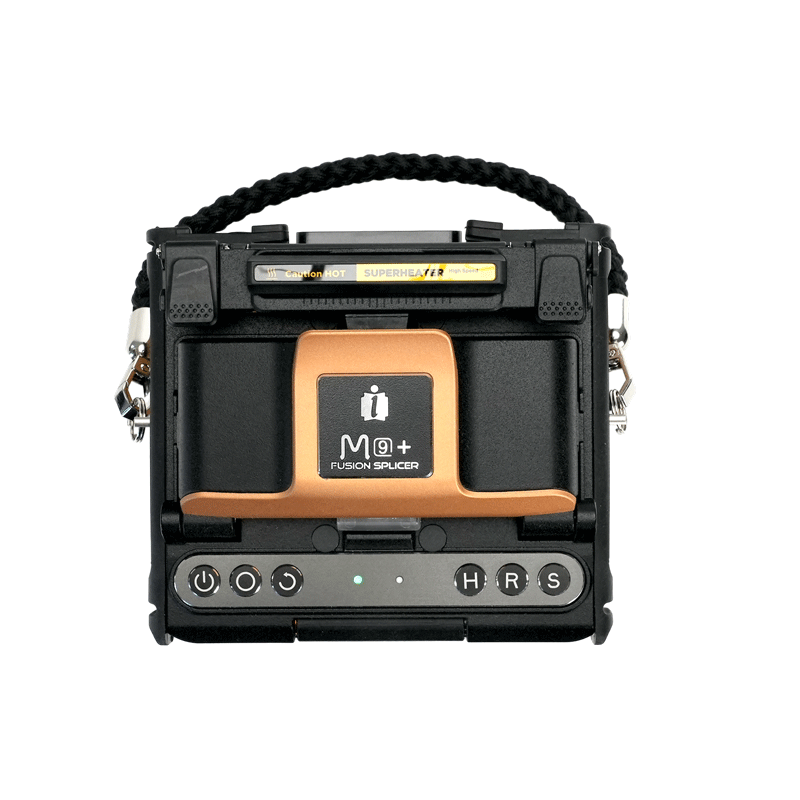

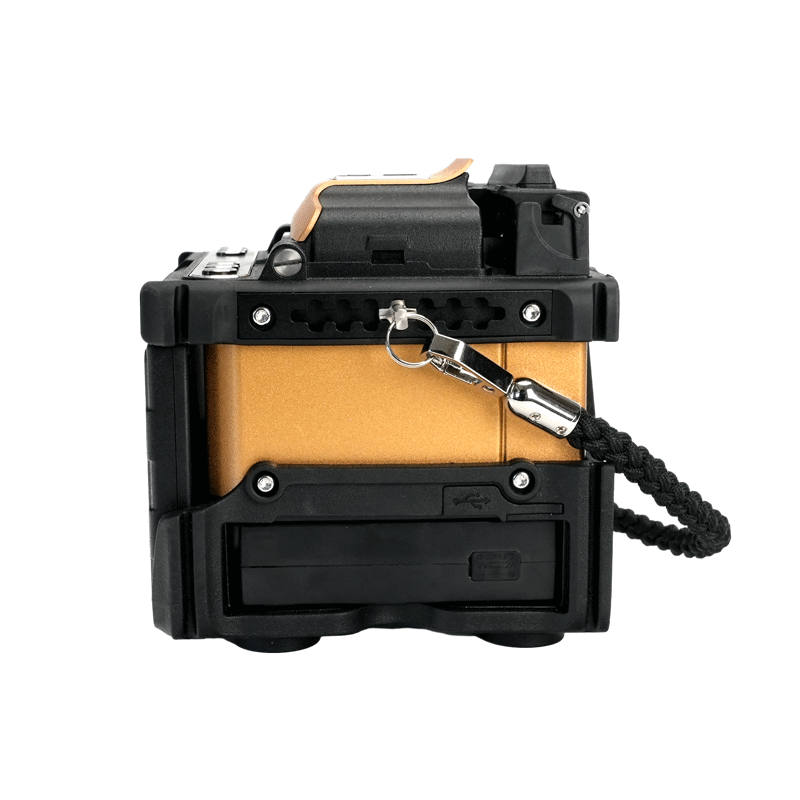

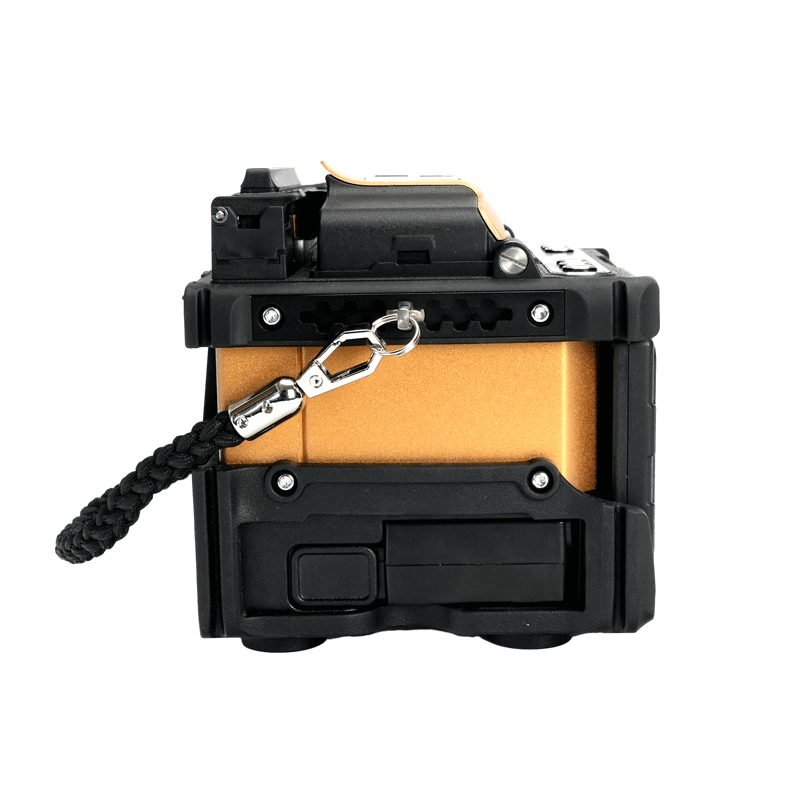

INNO M9+ Core Alignment Fusion Splicer

View Pro Manager compatible

The INNO M9+ is a compact core alignment fusion splicer with AI-driven features, built-in IoT and GPS, and integration with INNO’s View Pro Manager platform. It delivers splicing in as little as 4 seconds and heating from 9 seconds, combining high performance with a lightweight field-ready design.

£2,350.00 +VAT

3-year warranty

Included with every INNO splicer, backed by our UK service centre.

Quick enquiry

Ask about price, availability, trade-in or a demonstration. We’ll know which product you’re looking at, so just tell us what you need.






    We’ll get back to you as soon as possible.

    Overview

    The INNO M9+ is a compact, professional core alignment fusion splicer designed for technicians who need high-performance splicing without the size and weight of a larger platform.
    It combines core alignment technology with AI-driven operation, embedded IoT connectivity and GPS, allowing the splicer to integrate with INNO’s View Pro Manager for splice data, asset tracking, job management and preventative maintenance.

    The M9+ is built for fast field operation, with a Quick Mode splice time of approximately 4 seconds and a Quick heating time of approximately 9 seconds. It also supports automatic arc calibration based on air pressure and temperature, helping maintain consistent performance across changing working conditions.

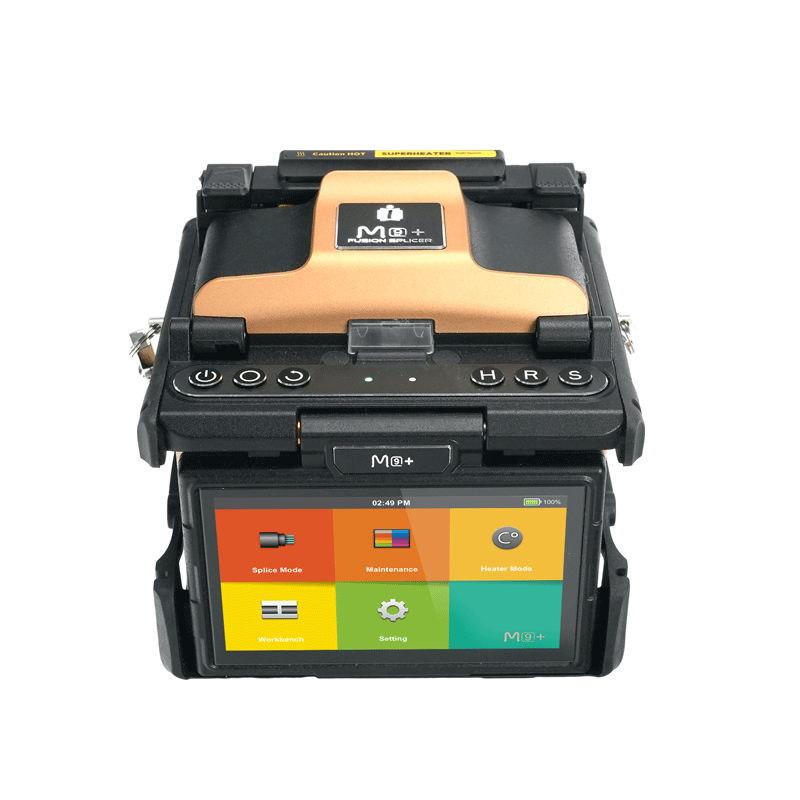

    With a 4.3-inch full touchscreen, compact metal-bodied construction and a weight of approximately 1.63 kg including the battery, the M9+ is particularly well suited to FTTH, FTTP and telecoms installation work where portability and precision are equally important.

    INNO Instrument Exclusive Business Partner for the UK and Ireland

    Why buy from Uptero

    One team supports you from the first conversation to the last service, with everything your equipment needs in one place.

    Expert sales advice

    Help choosing the right equipment for your work and budget.

    Manufacturer warranty

    INNO warranty cover, handled here in the UK.

    Service and repair

    Calibration, servicing and repairs at our UK service centre.

    Rental equipment

    Splicers to hire for projects, busy periods and backup.

    Accessories and spares

    Genuine INNO parts, consumables and accessories in UK stock.

    Technical support

    Engineers on hand for faults, software updates and everyday questions.

    View Pro Manager compatible

    Manage every splicer from one dashboard

    This splicer connects to View Pro Manager, INNO’s cloud platform for fusion splicer fleets. Follow results as they happen, keep complete records for audits and keep every splicer set up the way you want it.

    Technical specifications

    ModelM9+
    Alignment methodCore alignment
    Number of fibresSingle
    Applicable fibresSM (G.652 & G.657) / MM (G.651) / DS (G.653) / NZDS (G.655) / CS (G.654) / EDF
    Coating diameter100 µm – 3 mm
    Cladding diameter80–150 µm
    Cleave length5–16 mm
    Typical splice lossSM 0.02 dB / MM 0.01 dB / DS 0.03 dB / NZDS 0.03 dB / G.657 0.02 dB
    Return loss> 60 dB
    Splice time
    Quick mode
    Avg. 4 s
    SM mode
    Avg. 5 s
    Auto mode
    Avg. 7 s
    Splice programmesMax. 300 modes
    Automatic calibrationAutomatic arc calibration by air pressure & temperature
    Electrode lifespan6,000 arc discharges
    Heating programmesMax. 100 modes
    Heating time
    Quick
    9 s
    Average
    13 s (60 mm slim)
    Protection sleeve20–60 mm
    Data outputUSB-C, View Pro Manager (IoT & GPS)
    Splice memory20,000 splice records / 10,000 images
    Battery
    Capacity
    4,900 mAh
    Operation cycle
    Up to 220 cycles (splice + heat)
    Charging
    USB-C
    Power supplyAC 100–240 V, DC 9–19 V
    Monitor4.3" colour LCD, full touchscreen
    Magnification×320
    Size (H × W × D)125 × 144 × 136 mm
    Weight1.63 kg
    Pull test1.96–2.25 N

    * Splice time is measured from fibres entering the screen until the estimated loss is displayed, and can vary with calibration status.

    * Battery measured as a 1-minute cycle of splicing and heating in Power Save mode.

    Package & accessories

    In the boxModel
    CleaverV2
    SOC holderFH-SOC-R
    SOC heater coverHTS-SOC-07
    Cooling trayCG-26
    ElectrodesE-70
    Battery packLBT-5000C
    USB adapterUSB-8P
    USB charging cableUSB-11P
    Carrying caseICC-61
    Shoulder strapST-02
    Optional accessoriesModel
    Alcohol pumpTK02-AP01
    StripperTK-MP01
    Cigarette lighter cable (USB-C)CJ-13
    Heat-shrink sleeve (60 mm)PS-60S
    Magnetic detachable holderFH-200/250S-1, FH-900S-1

    Environmental conditions & tests

    • IPX2Water resistance
    • 76 cm dropShock resistance
    • IP5XDust resistance
    Operating conditions
    Altitude
    0–5,000 m
    Humidity
    0–95%, non-condensing
    Temperature
    −10 to 50 °C
    Wind
    Up to 15 m/s
    Storage conditions
    Humidity
    0–95%, non-condensing
    Temperature
    −40 to 80 °C
    Resistance tests
    Shock
    76 cm drop onto bottom surface
    Dust exposure
    0.1–500 µm aluminium silicate
    Rain
    10 mm/h for 10 min

    Downloads & support

    Software for this product, plus direct access to our UK technical team.

    Software updates

    • Software 3.04For units on V3.xx

      Improved compatibility with the new 4G communication module

      General improvements

      How to update
      Update Instructions
      Prepare USBFormat a USB drive as FAT32.
      Prepare fileThe software archive must be named update.zip. If the downloaded ZIP has another filename, rename it to update.zip. Do not extract it unless the selected software version says otherwise.
      Copy filePlace update.zip directly in the USB drive root (main directory) — not inside a folder.
      Start upgradeInsert the USB drive and start the software upgrade from the on-device menu.
      ExceptionsIf an Upgrade Method is shown for the selected software version, follow that method instead of the standard update.zip procedure.
      ImportantV1.xx / V3.xx are separate generations and are not interchangeable.
      Download
    • Software 1.15For units on V1.xx

      General improvements

      How to update

      If the currently installed V1.xx software is V1.11 or earlier, use the legacy method: extract the package, copy all files to the USB root and run the upgrade twice. On later V1.xx software, use the standard update.zip method.

      Download

    Need a different version? Contact us or WhatsApp

    PC programs
    • USB port driver for Windows 8 and 10 (64-bit)ZIP, 6.1 MB
      Release notes
      Install this driver if your PC does not recognise the splicer when connected by USB.
      Download
    • INNO PC ProgramVersion 1.21ZIP, 81.0 MB
      Release notes
      Download splice records from your INNO splicer and create reports on a Windows PC.
      Download
