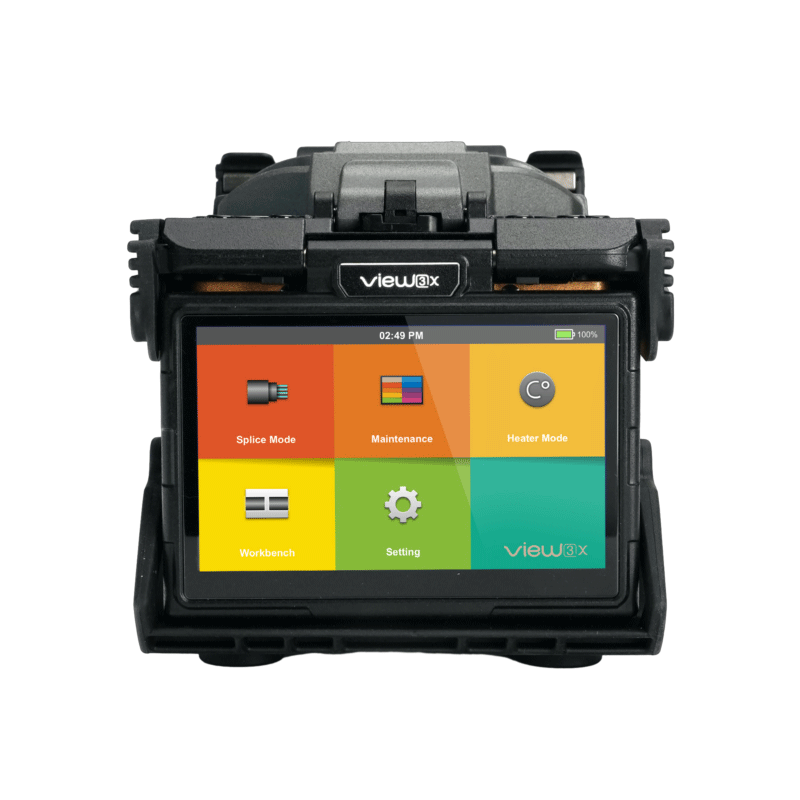

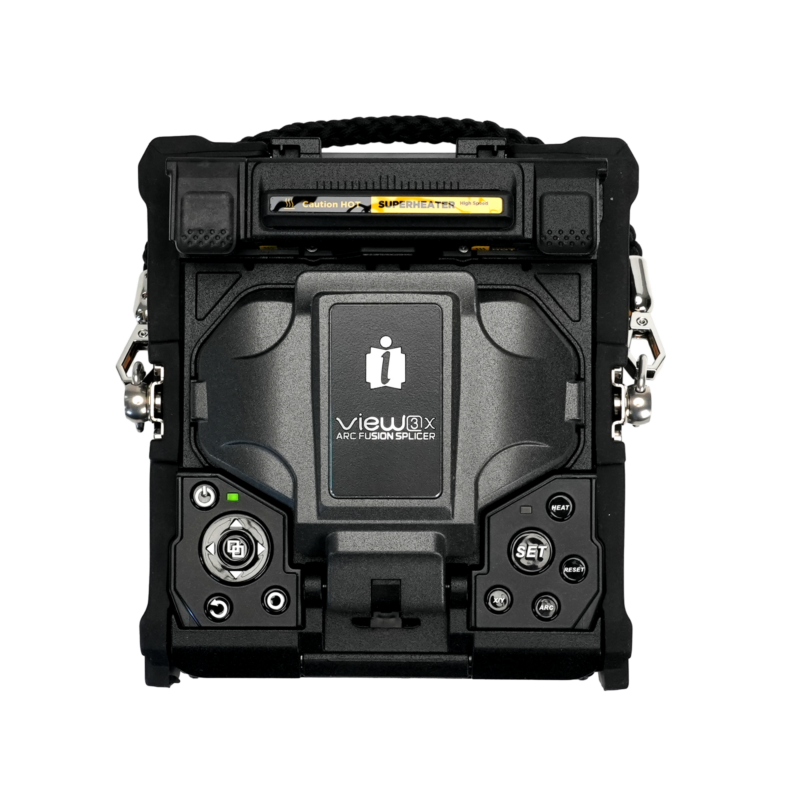

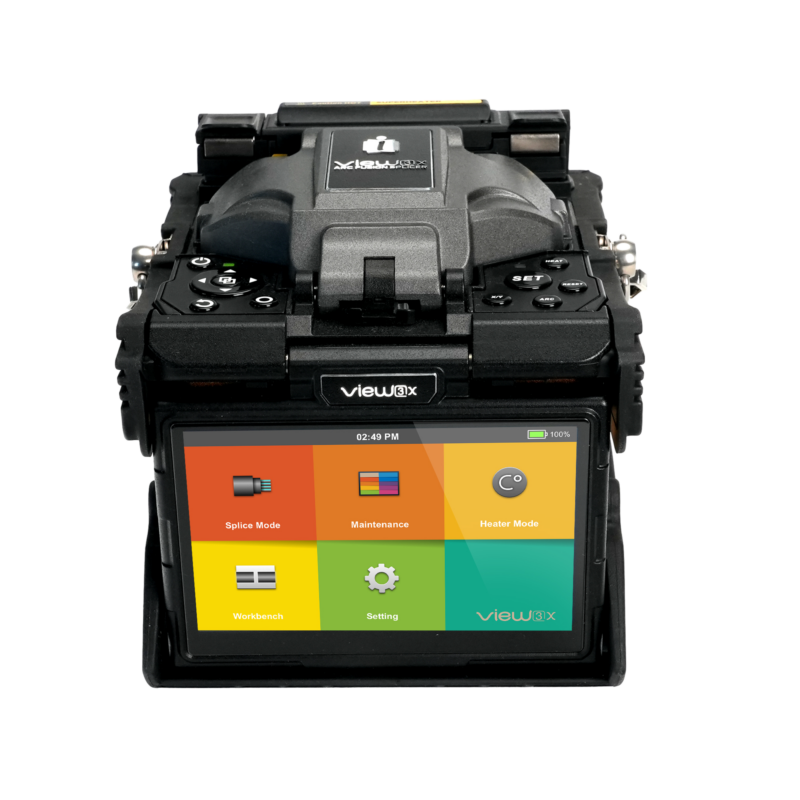

View 3X
The INNO View 3X is a fast, intelligent active cladding alignment fusion splicer designed for professional fibre installation and maintenance. Featuring 4-second splicing, 9-second heating, Active V-Groove alignment, AI-driven operation, IoT connectivity and GPS, it combines speed, portability and smart project management in a compact field-ready platform.
Discontinued · Still supported
Included with every INNO splicer, backed by our UK service centre.
Quick enquiry
Ask about price, availability, trade-in or a demonstration. We’ll know which product you’re looking at, so just tell us what you need.
Overview
The INNO View 3X is an Active V-Groove cladding alignment fusion splicer developed for fast and consistent fibre splicing in professional telecoms and fibre network environments.
Part of INNO Instrument’s View X Series, the View 3X combines rapid splicing performance with intelligent connectivity and project-management features. It delivers splice times as fast as 4 seconds and heating times from 9 seconds, helping technicians work efficiently during installation, maintenance and repair projects.
Its Active V-Groove cladding alignment system accurately positions the fibre prior to splicing, while INNO’s advanced splice-loss estimation and automatic splice modes support repeatable results across commonly used fibre types. Built-in IoT and GPS connectivity allows the View 3X to integrate with the INNO View Pro Manager platform for device, job and work management, reporting and asset tracking.
INNO Instrument Exclusive Business Partner for the UK and Ireland
Why buy from Uptero
One team supports you from the first conversation to the last service, with everything your equipment needs in one place.
Expert sales advice
Help choosing the right equipment for your work and budget.
Manufacturer warranty
INNO warranty cover, handled here in the UK.
Service and repair
Calibration, servicing and repairs at our UK service centre.
Rental equipment
Splicers to hire for projects, busy periods and backup.
Accessories and spares
Genuine INNO parts, consumables and accessories in UK stock.
Technical support
Engineers on hand for faults, software updates and everyday questions.
Downloads & support
Software for this product, plus direct access to our UK technical team.
Software updates
- DownloadSoftware 3.01For units on V3.xx
Initial release
How to update
Update Instructions Prepare USB Format a USB drive as FAT32. Prepare file The software archive must be named update.zip. If the downloaded ZIP has another filename, rename it to update.zip. Do not extract it unless the selected software version says otherwise. Copy file Place update.zip directly in the USB drive root (main directory) — not inside a folder. Start upgrade Insert the USB drive and start the software upgrade from the on-device menu. Exceptions If an Upgrade Method is shown for the selected software version, follow that method instead of the standard update.zip procedure. Important V1.xx / V3.xx are separate generations and are not interchangeable. - DownloadSoftware 1.05For units on V1.xx
General improvements
How to update
If the currently installed software is V1.00–V1.01, extract the package, copy all extracted files to the USB root, run the upgrade, then repeat once using update.zip. From V1.02 onward, use update.zip directly.
Need a different version? Contact us or WhatsApp
PC programs
- USB port driver for Windows 8 and 10 (64-bit)ZIP, 6.1 MBDownload
Release notes
Install this driver if your PC does not recognise the splicer when connected by USB. - INNO PC ProgramVersion 1.21 · ZIP, 81.0 MBDownload
Release notes
Download splice records from your INNO splicer and create reports on a Windows PC.
Every INNO splicer from Uptero carries a 3-year warranty. If it ever needs attention, our UK service centre turns repairs around in about 3 working days.
Ask our technical team
Questions about a fault, a software update or using this product? Send us the details and our UK engineers will get back to you.
