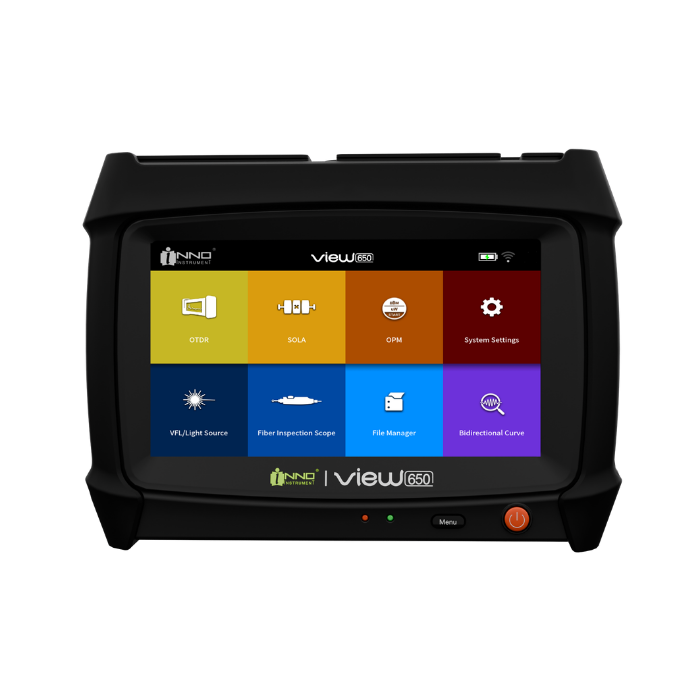

INNO View650 Modular OTDR

SOLA Smart Optical Link AnalyzerView Pro Manager compatible

The INNO View650 is a professional modular OTDR with SOLA link analysis, a 7-inch touchscreen and a built-in power meter, VFL and light source. Supplied with Module 11 (1310 / 1550 nm plus a 1650 nm live port), with Modules 7 and 10 coming soon.

£5,200.00 +VAT

3-year warranty

Included with this INNO OTDR, backed by our UK service centre.

Quick enquiry

Ask about price, availability, trade-in or a demonstration. We’ll know which product you’re looking at, so just tell us what you need.






    We’ll get back to you as soon as possible.

    Key features

    • 42 dB

      Dynamic range

      Up to 42 dB with the single-mode live-fibre modules, and test ranges up to 320 km.

    • 0.5 m

      Event dead zone

      0.5 m event and 2.5 m attenuation dead zone, with a 35 m PON dead zone for splitter networks.

    • SOLA link analysis

      Smart Optical Link Analyzer turns multi-pulse, multi-wavelength traces into a clear link view with pass/fail results.

    • Modular design

      Supplied with Module 11: 1310 / 1550 nm plus a 1650 nm live port for in-service testing. Modules 7 (SM/MM) and 10 (1625 nm live) are coming soon.

    • 7"

      Large touchscreen

      800 × 480 multi-touch display for reading traces and reports comfortably in the field.

    • > 12 h

      Continuous testing

      6,900 mAh battery for over 12 hours of continuous testing and more than 19 hours standby.

    • Built-in test tools

      Light source, optical power meter and visual fault locator built in, plus macro-bend detection and auto mode.

    • View Pro Manager ready

      Wi-Fi, 4G LTE, GPS and gigabit LAN. Access your OTDR and SOLA files remotely and keep track of every instrument through View Pro Manager.

    Overview

    The INNO View650 is a high-performance modular OTDR for technicians installing, certifying and maintaining fibre networks, from last-mile and PON access through to metro and long-haul links.

    One platform, three optical modules

    The View650 is built around interchangeable optical modules, so the same instrument can be configured for the networks you work on. Module 11 is available to order now. Modules 7 and 10 will follow, so get in touch if you need multimode or 1625 nm testing and we’ll keep you updated.

    Available now

    Module 11

    Single-mode with a 1650 nm live port

    • 1310 / 1550 / 1650 nm
    • 42 / 41 / 42 dB dynamic range
    • 0.5 m event dead zone
    • Test range up to 320 km
    • Live-fibre testing at 1650 nm
    • SC/APC, interchangeable FC and LC

    Supplied as standard

    Coming soon

    Module 10

    Single-mode with a 1625 nm live port

    • 1310 / 1550 / 1625 nm
    • 42 / 41 / 42 dB dynamic range
    • 0.5 m event dead zone
    • Test range up to 320 km
    • Live-fibre testing at 1625 nm
    • FC, interchangeable SC and ST

    Ask about availability →

    Coming soon

    Module 7

    Single-mode and multimode, quad wavelength

    • 850 / 1300 / 1310 / 1550 nm
    • 27 / 29 / 39 / 38 dB dynamic range
    • Event dead zone 0.5 m (MM), 0.7 m (SM)
    • Test range up to 320 km (SM), 40 km (MM)
    • Ideal for data centres and enterprise links
    • SC/APC (SM), SC/UPC (MM)

    Ask about availability →

    SOLA makes every test simple

    SOLA (Smart Optical Link Analyzer) sets the optimal test conditions automatically, combines multiple pulse widths and presents the link as a clear event map with pass/fail results. Technicians get accurate, consistent results without setting complicated parameters, and the standard OTDR mode is always there for detailed trace work.

    Everything you need in one instrument

    A 7-inch high-brightness touchscreen, up to 256,000 sampling points and splitter testing up to 1:128 cover demanding FTTx and PON work. The built-in optical power meter, visual fault locator and light source mean fewer separate instruments in the van, and the battery delivers over 12 hours of continuous testing.

    Connected reporting

    Results are saved as SOR, PDF, CUR or SOLA files and can be transferred over USB, Wi-Fi or gigabit LAN, or analysed on a PC with the INNO PC program. With 4G LTE and GPS on board, the View650 also works with View Pro Manager for remote access to your OTDR and SOLA files.

    INNO Instrument Exclusive Business Partner for the UK and Ireland

    Why buy from Uptero

    One team supports you from the first conversation to the last service, with everything your equipment needs in one place.

    Expert sales advice

    Help choosing the right equipment for your work and budget.

    Manufacturer warranty

    INNO warranty cover, handled here in the UK.

    Service and repair

    Calibration, servicing and repairs at our UK service centre.

    Rental equipment

    Splicers to hire for projects, busy periods and backup.

    Accessories and spares

    Genuine INNO parts, consumables and accessories in UK stock.

    Technical support

    Engineers on hand for faults, software updates and everyday questions.

    View Pro Manager compatible

    Manage your OTDRs from anywhere

    This OTDR connects to View Pro Manager, INNO’s cloud platform for test equipment. Access your OTDR and SOLA files remotely as soon as they are saved, and keep track of every instrument from one dashboard. More OTDR features will follow as the platform develops.

    OTDR performance

    ModelView650
    OTDR modulesModule 11: SM, 1310 / 1550 nm + 1650 nm live port (available now)
    Module 10: SM, 1310 / 1550 nm + 1625 nm live port (coming soon)
    Module 7: SM/MM, 850 / 1300 / 1310 / 1550 nm (coming soon)
    Fibre typeSM and MM (Module 7)
    G.652 SM (Modules 10 and 11)
    WavelengthsModule 7: 850 / 1300 / 1310 / 1550 nm
    Module 10: 1310 / 1550 / 1625 nm (1625 live)
    Module 11: 1310 / 1550 / 1650 nm (1650 live)
    All ±20 nm
    Maximum dynamic rangeModule 7: 27 / 29 / 39 / 38 dB
    Modules 10 and 11: 42 / 41 / 42 dB
    Dead zone
    Event
    0.5 m (Module 7 SM: 0.7 m)
    Attenuation
    2.5 m
    PON
    35 m
    Test range1 m – 320 km (Module 7 MM: 1 m – 40 km)
    Pulse width3 ns – 20 µs (Module 7 MM: 3 ns – 1 µs)
    Distance accuracy±(0.75 m + sampling resolution + 0.0025% × test distance)
    Linearity±0.03 dB/dB
    Sampling points256,000 (Module 7 MM: 150,000)
    Sampling resolution0.04–10.24 m (Module 7 MM: 0.04–4 m)
    Loss resolution / threshold0.001 dB / 0.02 dB
    Distance resolution0.1 m
    Refractive index1.000000–2.000000
    Loss measurement modeTPA / LSA
    Laser safety classClass II
    OTDR connectorModule 7: SC/APC (SM), SC/UPC (MM), interchangeable FC, LC
    Module 10: FC, interchangeable SC, ST
    Module 11: SC/APC, interchangeable FC, LC
    File formatsSOR, PDF, CUR, SOLA

    Built-in test tools

    Integrated toolsSOLA, light source, power meter, VFL
    Light source
    Wavelengths
    Same as OTDR wavelengths
    Output power
    ≥ −5 dBm
    Stability
    CW, ±0.5 dB / 15 min (after 15 min warm-up)
    Output modes
    CW / 270 Hz / 330 Hz / 1 kHz / 2 kHz
    Connector
    SC/APC, interchangeable FC, LC (Module 7 MM: SC/UPC)
    Optical power meter
    Wavelength range
    800–1700 nm
    Calibrated wavelengths
    850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650 nm
    Measurement range
    −70 to +6 dBm (optional −50 to +26 dBm)
    Frequency identification
    CW / 270 Hz / 330 Hz / 1 kHz / 2 kHz
    Resolution
    0.01 dB
    Uncertainty
    ±5%
    Connector
    FC, interchangeable SC, ST
    Visual fault locator
    Wavelength
    650 nm ±20 nm
    Output power
    1 mW
    Modes
    CW / 1 Hz / 2 Hz
    Connector
    Universal FC / SC / ST
    Software featuresAuto mode, PDF reports and on-screen PDF viewer, macro-bend detection, INNO PC analysis software, transfer over USB and Wi-Fi, printer support, USB mouse

    General

    Display7" TFT-LCD, 800 × 480, multi-touch capacitive
    Power supplyAC 100–240 V, 50/60 Hz adapter; 20 V DC input
    Battery
    Battery
    10.8 V, 6,900 mAh lithium
    Battery life
    Standby > 19 h, continuous testing > 12 h
    Data storage16 GB internal, plus TF card and USB flash drive
    ChargingUSB-C
    InterfacesRJ45 LAN (10/100/1000 Mbps), 2 × USB 2.0, TF card, nano SIM
    WirelessWi-Fi, 4G LTE Cat.1, GPS
    Dimensions214 × 158 × 68 mm
    Weight≤ 1.65 kg (including battery)

    Package & accessories

    In the boxModel
    Power cableACC-25
    AC adapterJS-180300
    Soft carrying case
    Shoulder strap
    Touch pen
    Calibration certificate

    Environmental conditions

    Operating conditions
    Temperature
    −10 to 50 °C
    Humidity
    0–95% RH, non-condensing
    Storage conditions
    Temperature
    −40 to 70 °C
    Humidity
    0–95% RH, non-condensing

    Downloads & support

    Firmware, PC software and documents for this OTDR, plus direct access to our UK technical team.

    Software updates

    • Software 1.007For units on V1.xx

      General improvements

      How to update

      Extract the downloaded software ZIP and copy the extracted software file(s) directly to the USB root, not inside a folder, then start the software upgrade.
